BLACK / WHITE CONTRAST

TRANSFLECTIVE TECHNOLOGY

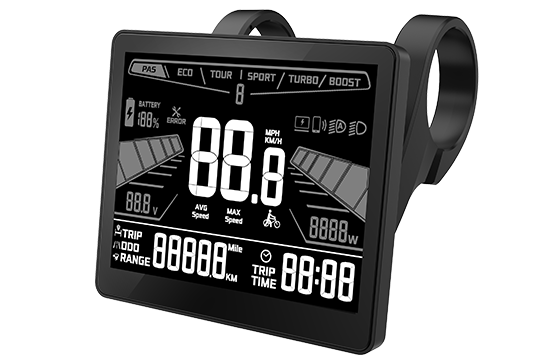

DM 05B

Outline Size

Products Features

Screen Type

DFSTN, segment, 3.5"

Rated Voltage

36/48/72V

Rated Current

15 mA/36V

Communication

UART/CAN

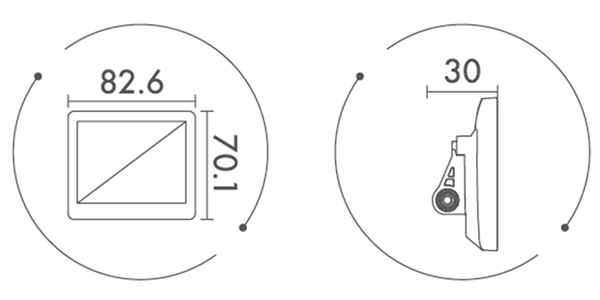

Outline Dimension

82.6*70.1*30

Mounting

Central mounting，φ22.2mmφ25.4mmφ31.8mm

Console Option

Seperated Control

Certification

CE/RoHS/EN 15194

Specificity

Optional Bluetooth/RTC

Typical Application

Road bike, Cargo
