VeloFox_The Leading HMI solution provider

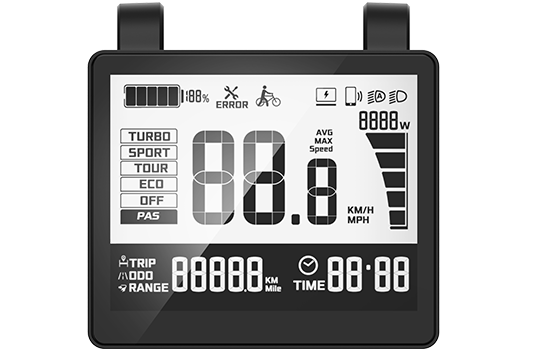

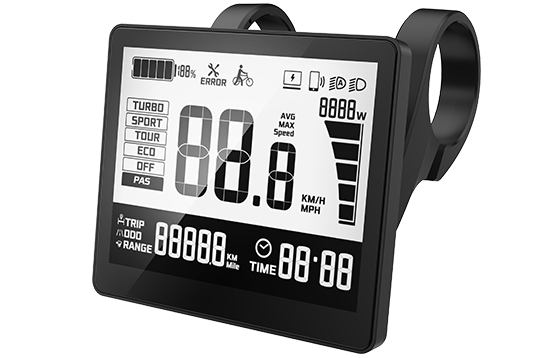

COMBINED SCREEN LARGER ICON,

CLEAR / VISIBLE

DM 05

Outline Size

Products Features

Screen Type

FSTN, segment, 3.5"

Rated Voltage

36/48/52V

Rated Current

31 mA

Communication

UART/CAN

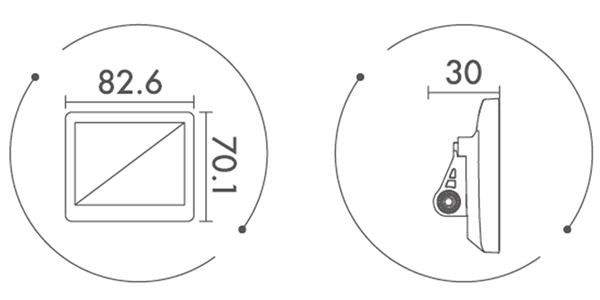

Outline Dimension

82.6*70.1*30

Mounting

Central Mounting, Φ22.2mm,Φ25.4mm,Φ31.8mm

Console Option

Seperated Remote

Certification

CE/RoHS/EN 15194

Specificity

Bluetooth,RTC,Auto Light be optional

Typical Application

City bike

Prev Back to lis Next

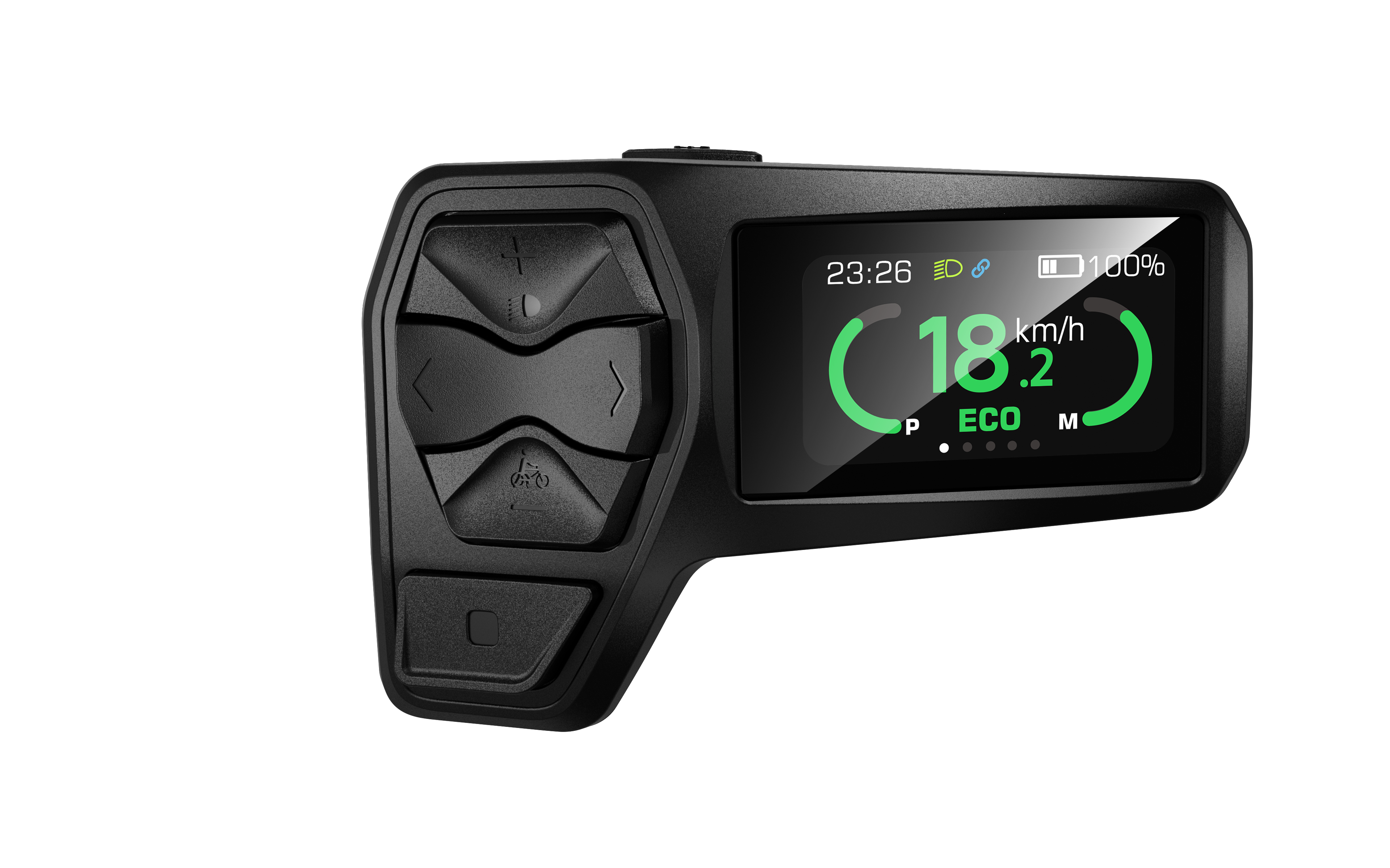

More Products
