VeloFox_The Leading HMI solution provider

TOP TUBE EMBEDED

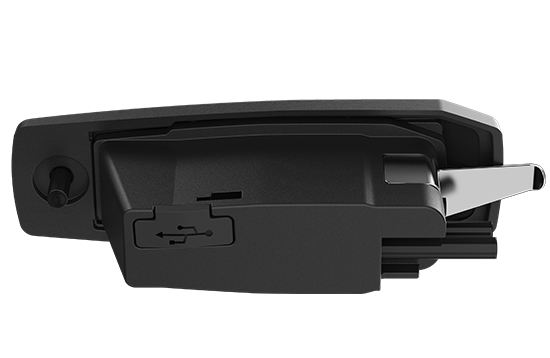

DIAGNOSTIC PORT AVAILABLE

DM 08C

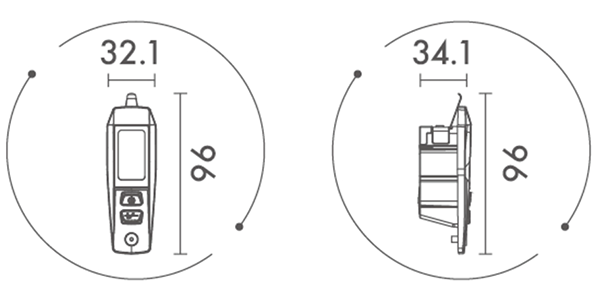

Outline Size

Products Features

Screen Type

IPS, matrix, 1.4"

Rated Voltage

36/48/52V

Rated Current

27 mA

Communication

UART/CAN

Outline Dimension

100.5*36.3*33.6

Mounting

Frame Top Tube

Console Option

Integrated, 2 Buttons/Seperated Remote

Certification

CE/RoHS/EN 15194

Specificity

With Bluetooth/RTC

Typical Application

City Bike, MTB, Folding Bike
