BEYOND SIMPLE

URBAN STYLE

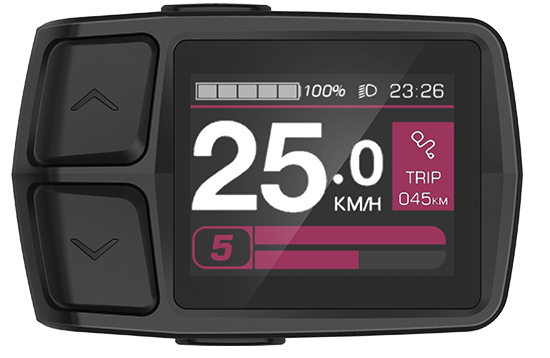

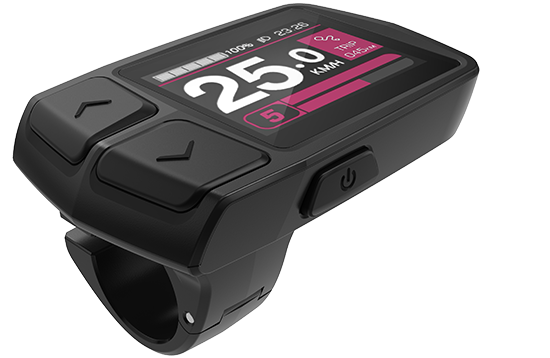

DM 07

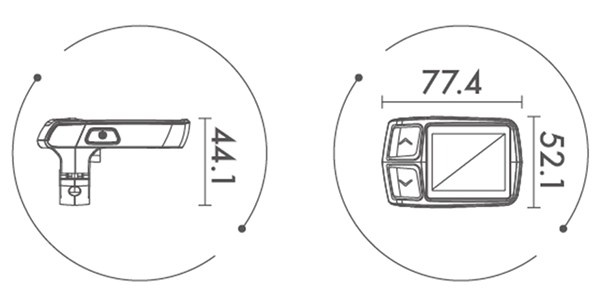

Outline Size

Products Features

Screen Type

IPS, matrix, 2.0"

Rated Voltage

36/48/52V

Rated Current

27 mA

Communication

UART/CAN

Outline Dimension

82.6*70.1*30

Mounting

Left Mounting, Φ22.2mm

Console Option

Integrated, 4 Buttons

Certification

CE/RoHS/EN 15194

Specificity

With Bluetooth/RTC/light sensor/USB charging optional

Typical Application

City bike, MTB, Folding bike
