COST-EFFECTIVE

COLORFUL SEGMENTS HIGH VISIBILITY

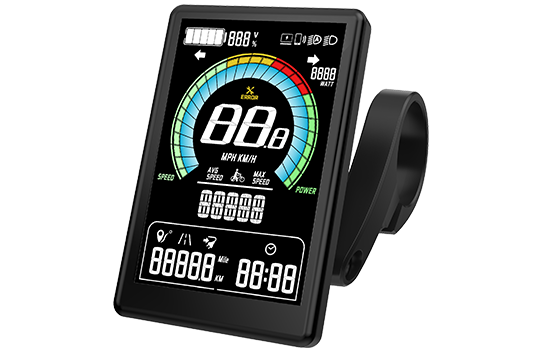

DM 06B

Outline Size

Products Features

Screen Type

colorful segments, 3.5"

Rated Voltage

36/48/52V

Rated Current

18 mA

Communication

UART/CAN

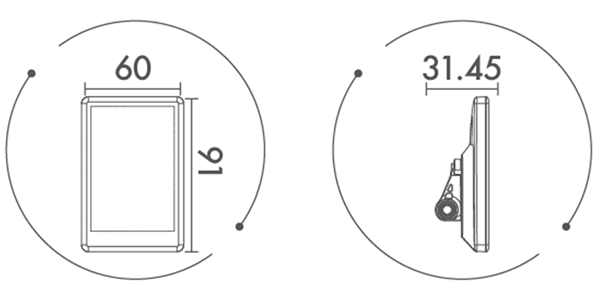

Outline Dimension

60.1*91.1*31.4

Mounting

Central Mounting, Φ22.2mm,Φ25.4mm,Φ31.8mm

Console Option

Seperated Remote

Certification

CE/RoHS/EN 15194

Specificity

Bluetooth,RTC,Auto Light be optional

Typical Application

City bike, MTB
