VeloFox_The Leading HMI solution provider

PREMIUM

EMBEDDED IOT SOLUTION

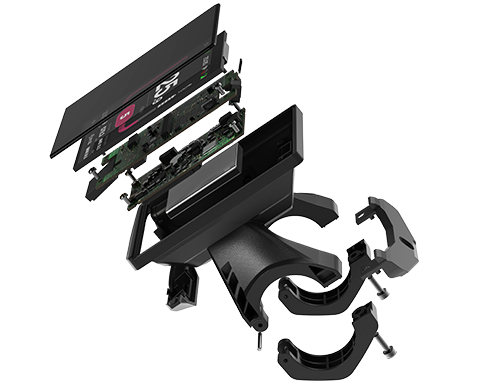

MODULAR DESIGN

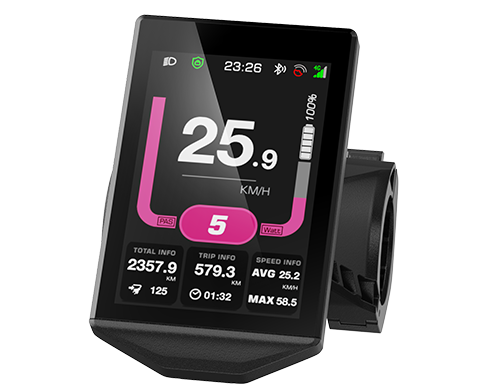

CM 18

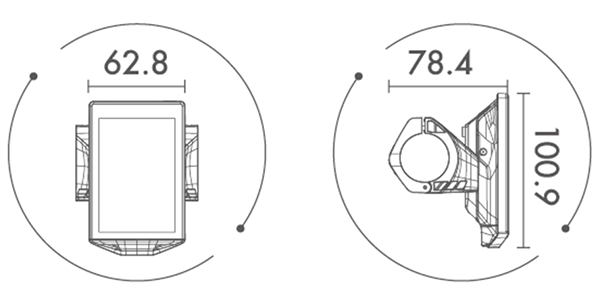

Outline Size

Products Features

Screen Type

IPS, matrix, 3.5"

screen size

3.5 inch

rated voltage

36/48/72V

rated current

105 mA/36V

communication

UART/CAN

outline dimension

100.9*80*78.4

mounting

Central mounting,22.2mm,25.4mm,31.8mm

console option

Seperated Control

certification

CE/RoSH/EN 15194

specificity

RTC/IOT

typical application

City Bike, MTB, Cargo
