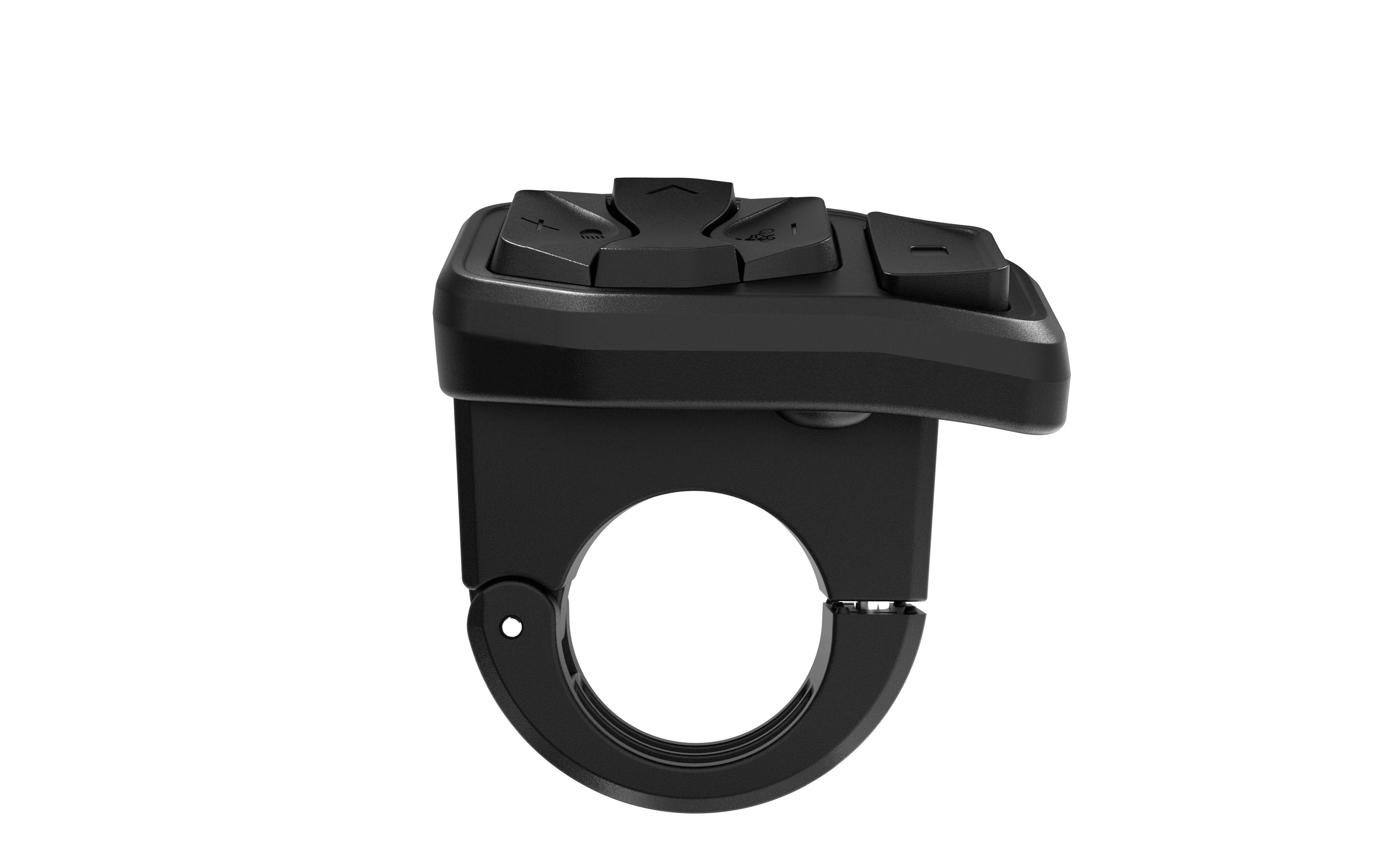

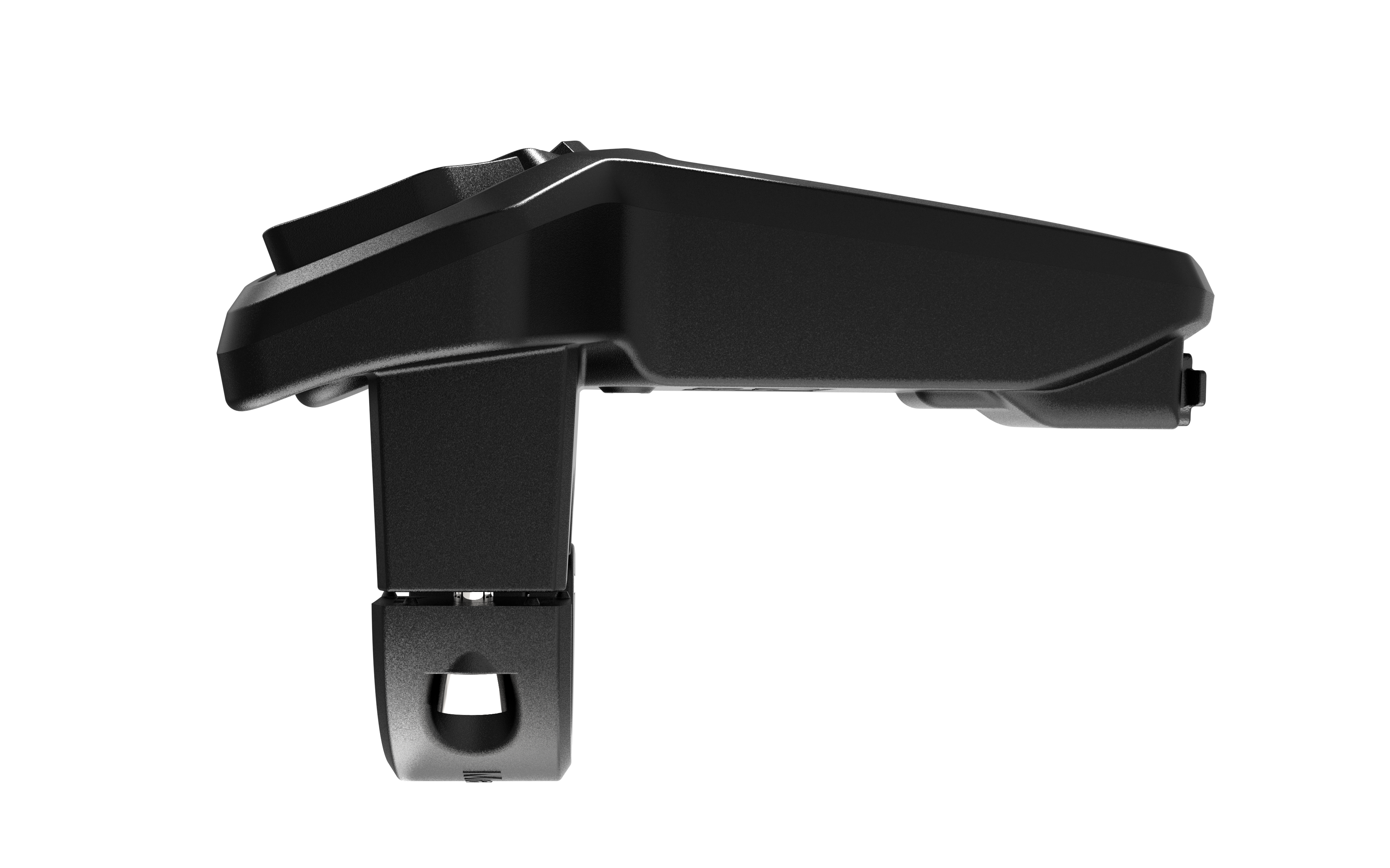

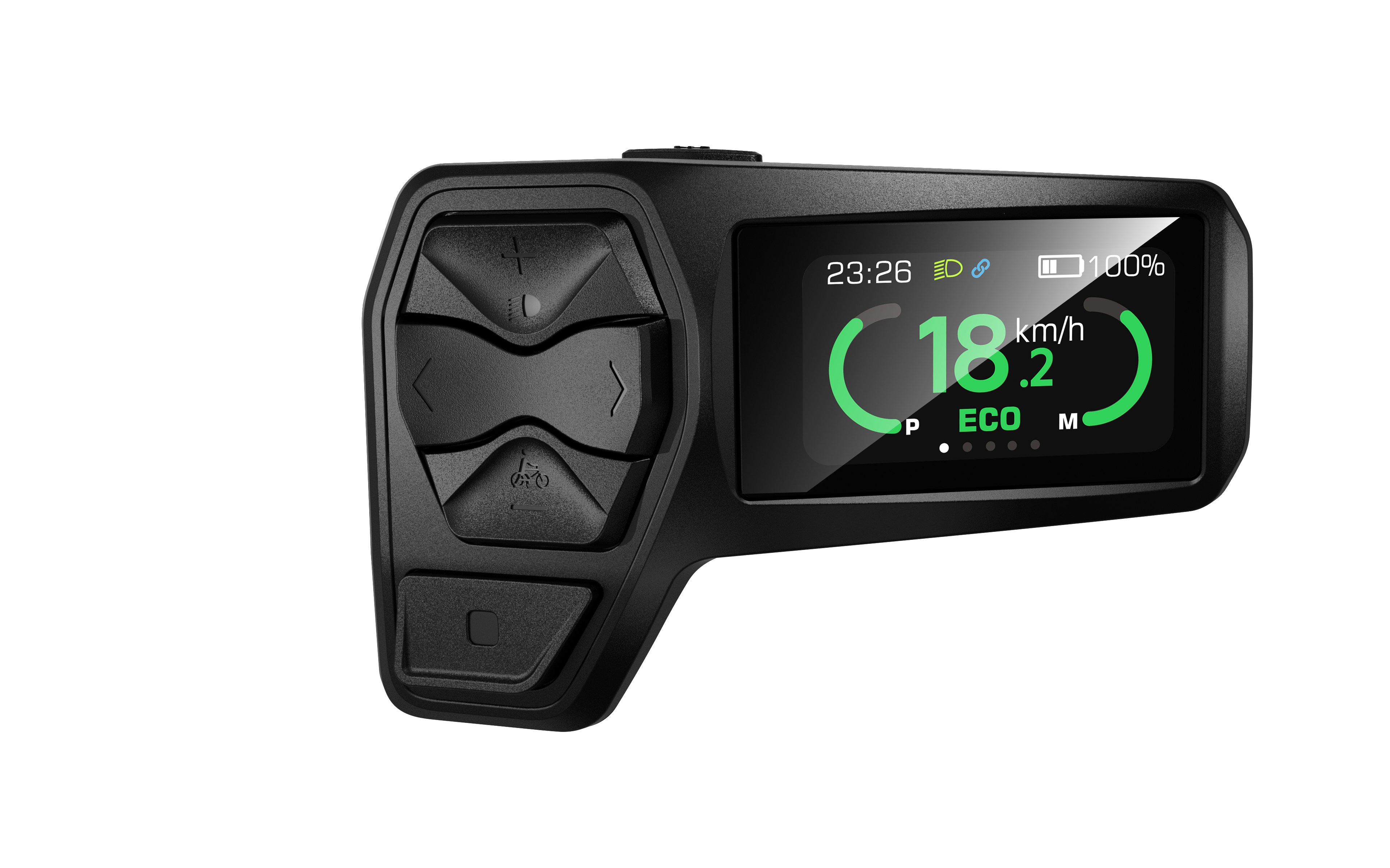

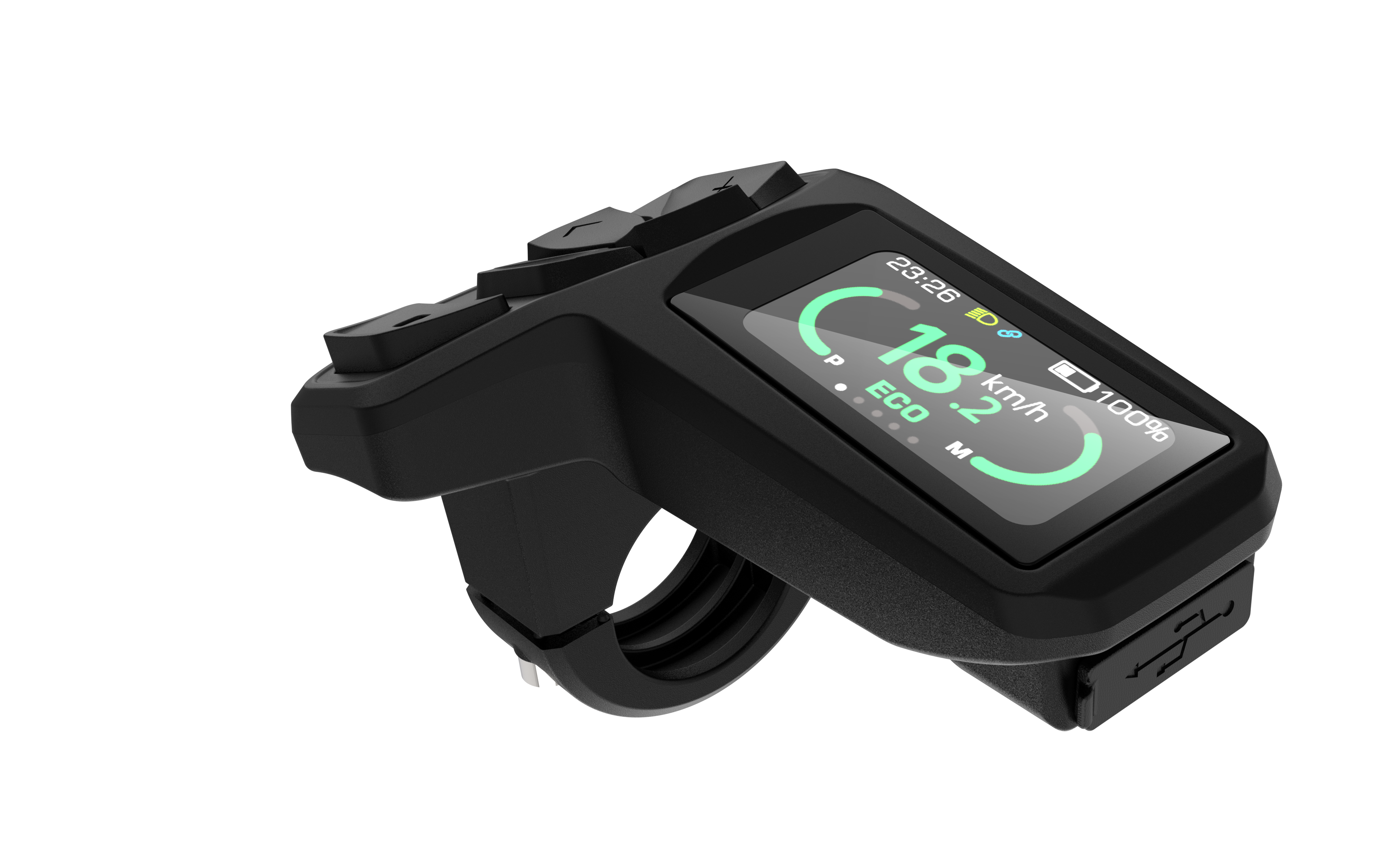

SMART CONSOLE

IPS SCREEN WITH OCA

MULTI-FUNCTION

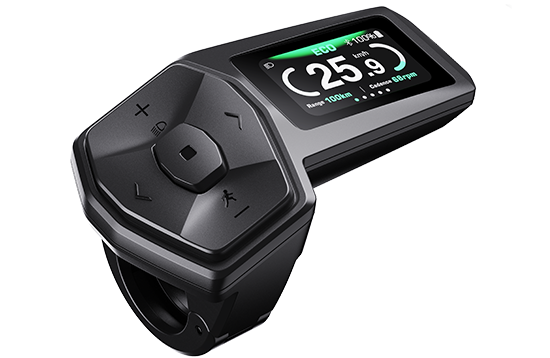

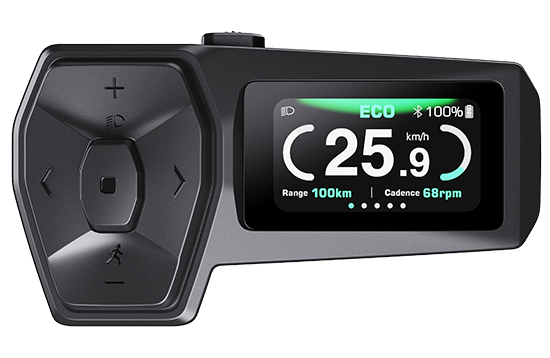

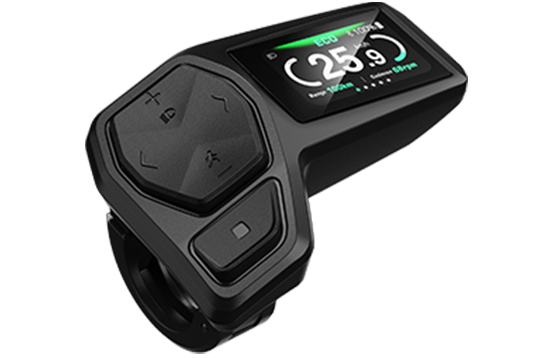

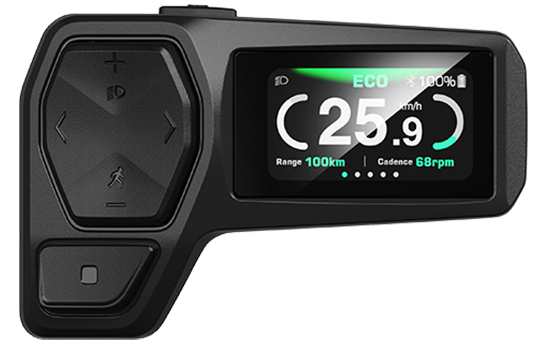

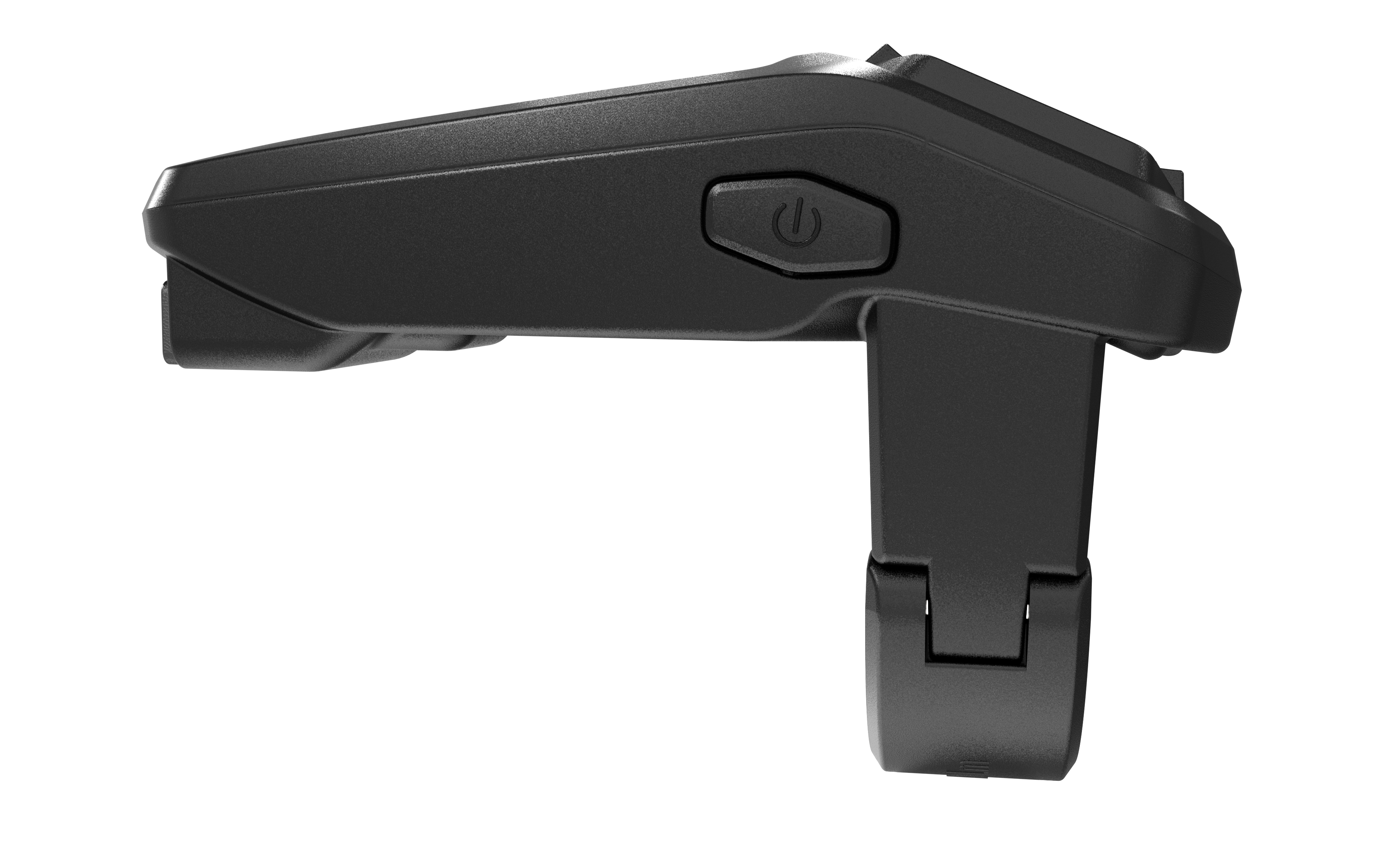

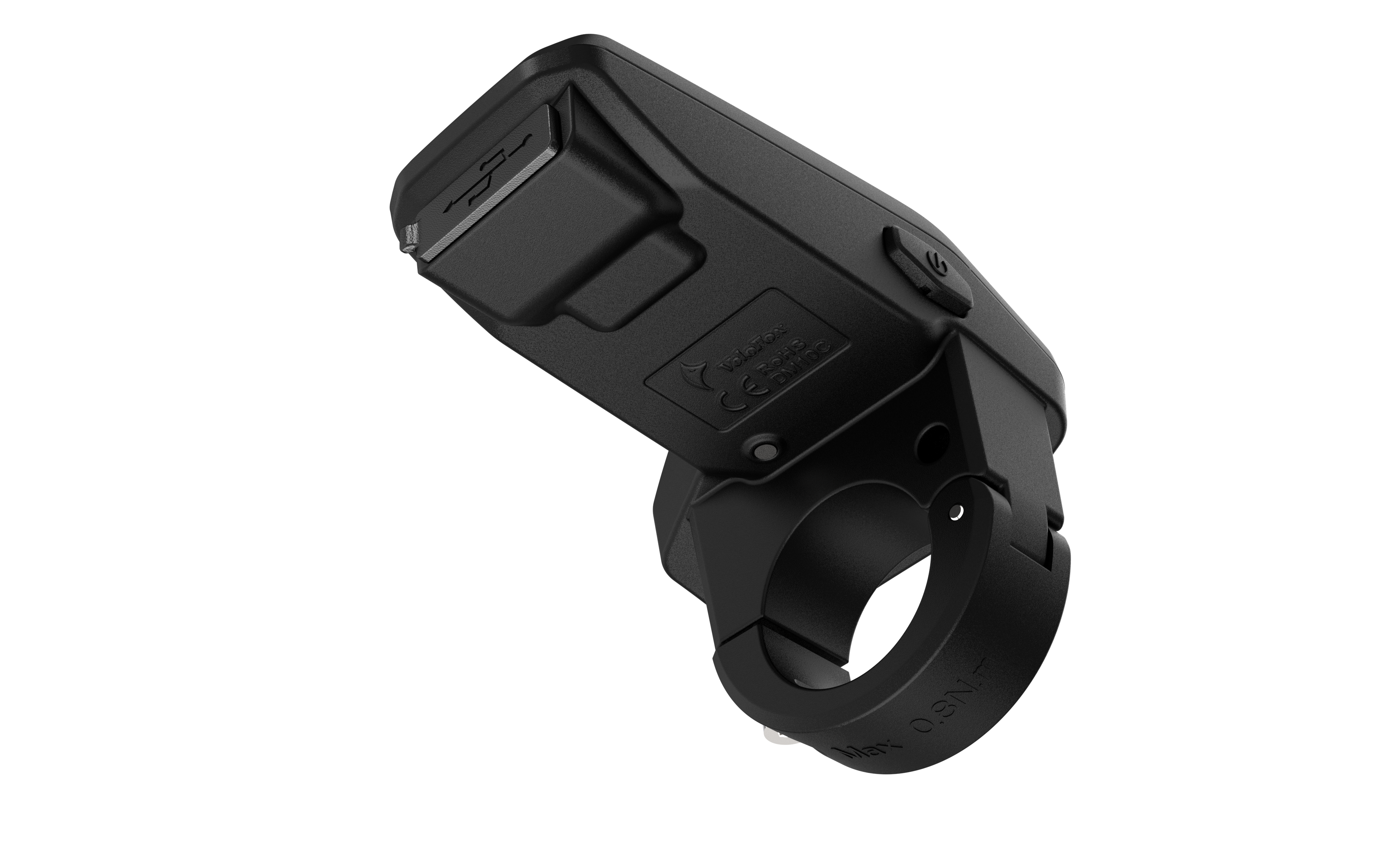

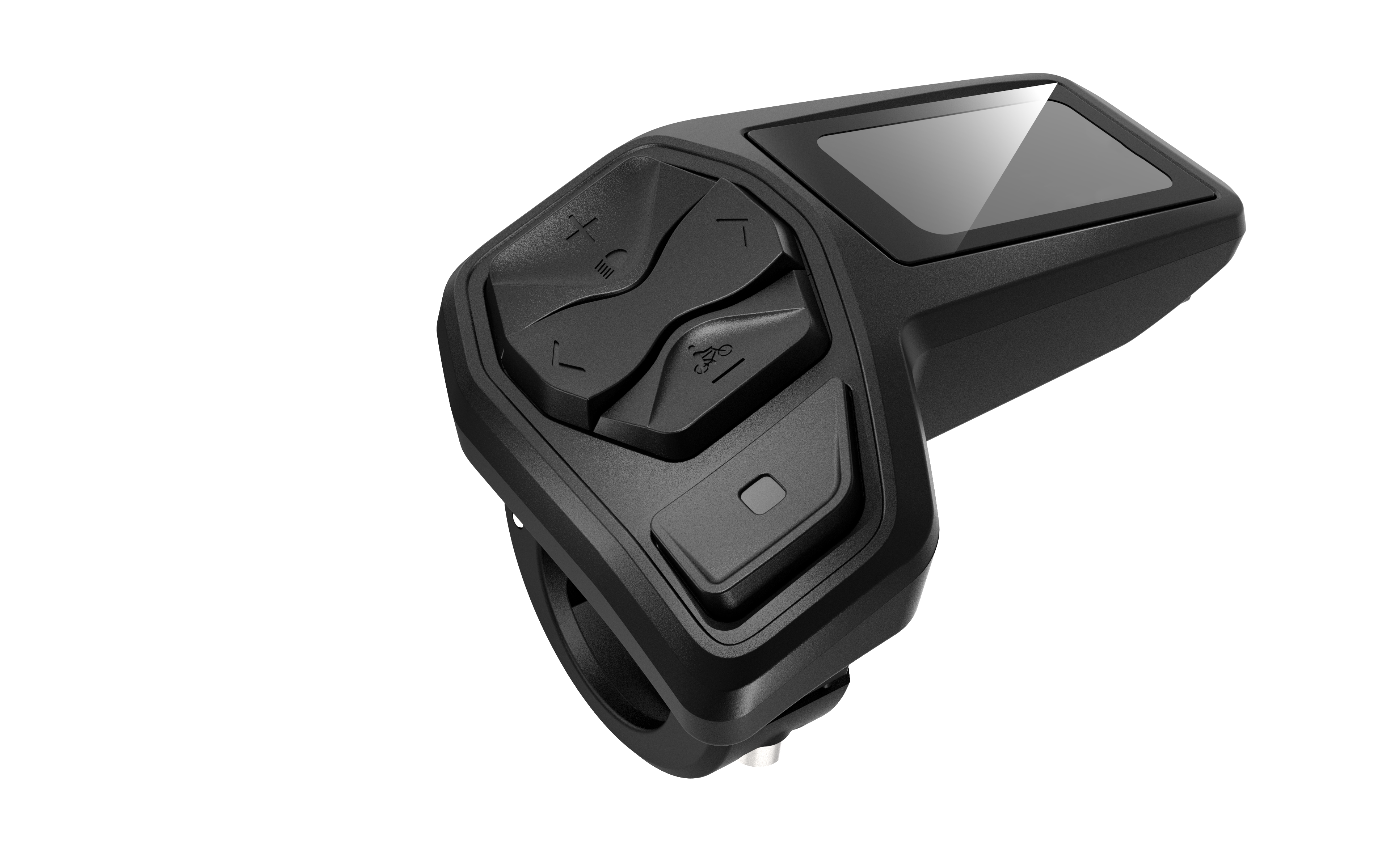

DM 10C

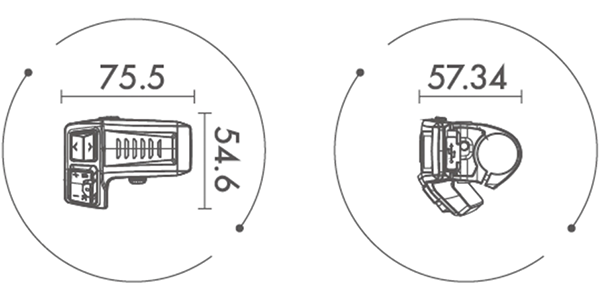

Outline Size

Products Features

Screen Type

IPS, matrix, 1.4"

Screen Size

1.4 inch

Rated Voltage

36/48/72V

Rated Current

27 mA/36V

Communication

UART/CAN

Outline Dimension

75.5*54.6*57.34

Mounting

Left mounting，φ22.2mm

Console option

Integrated, 6 Buttons

Certification

CE/ROSH/EN 15194

Specificity

Optional Bluetooth

Typical Application

City bike, MTB, Folding bike,Cargo
