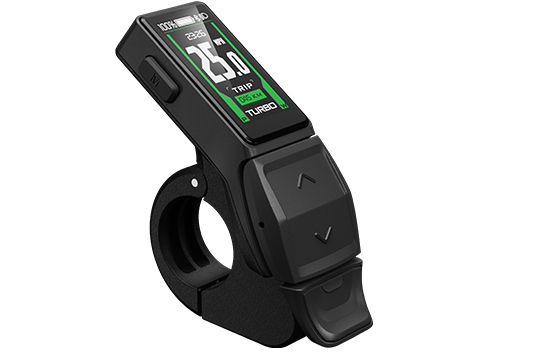

COLORFUL IPS WITH 4 BUTTONS

THROTTLE INTEGRATED

DM 09

Outline Size

Products Features

Screen Type

IPS, matrix, 1.4"

Rated Voltage

36/48/72V

Rated Current

27 mA/36V

Communication

UART/CAN

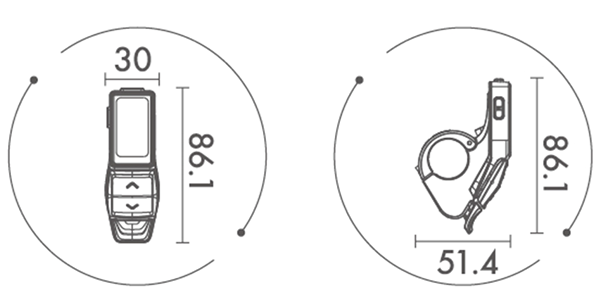

Outline Dimension

86.1*30*51.4

Mounting

Side mounting, Φ22.2mm

Console Option

Integrated， 4 Buttons

Certification

CE/RoHS/EN 15194

Specificity

Optional Bluetooth/Throttle

Typical Application

City bike, MTB, Folding bike
