BLACK / WHITE CONTRAST

BETTER VISIBILITY

DM 01

Outline Size

Products Features

Screen Type

VA,Segment,1.6"

Rated Voltage

36/48/52V

Rated Current

10mA,(94mA with charging)

Communication

UART/CAN

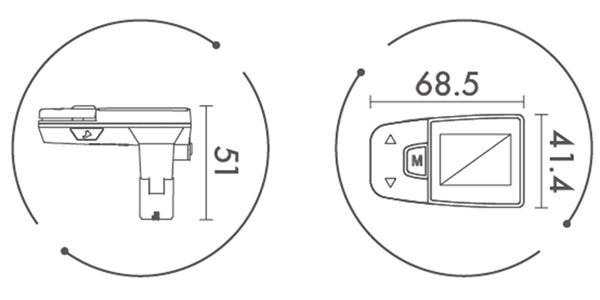

Outline Dimension

68.5*41.1*51

Mounting

Left side,φ22.2mm

Console Option

Integrated,5 buttons

Certification

CE/RoHS/EN 15194

Specificity

Bluetooth & USB charging optional

Typical Application

City bike,MTB
