VeloFox_The Leading HMI solution provider

COLORFUL ANIMATED INTERFACE

GUI TECH

DM 05C

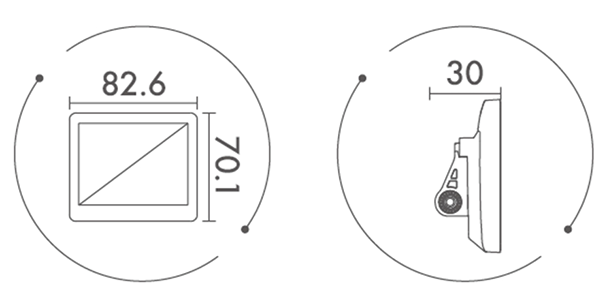

Outline Size

Products Features

Screen Type

IPS, matrix, 3.5"

Rated Voltage

36/48/52V

Rated Current

37.8 mA

Communication

UART/CAN

Outline Dimension

82.6*70.1*30

Mounting

Central Mounting, Φ22.2mm,Φ25.4mm,Φ31.8mm

Console Option

Seperated Control

Certification

CE/RoHS/EN 15194

Specificity

Bluetooth,RTC,Auto Light be optional

Typical Application

City bike,MTB
